Discription:
We are a remarkable entity, engaged in offering high quality Sight Glass. Our offered product is manufactured using premium quality raw material at our advanced manufacturing house in compliance with the predefined industry standards. This product is broadly in demand among our valuable clients owing to its sturdy design and easy-installation. Before dispatching, the offered product is duly examined to remove any defect or flaw.
Features:
- Corrosion resistance
- Excellent finish
- High strength
Other Details:
(In line flow indicator)

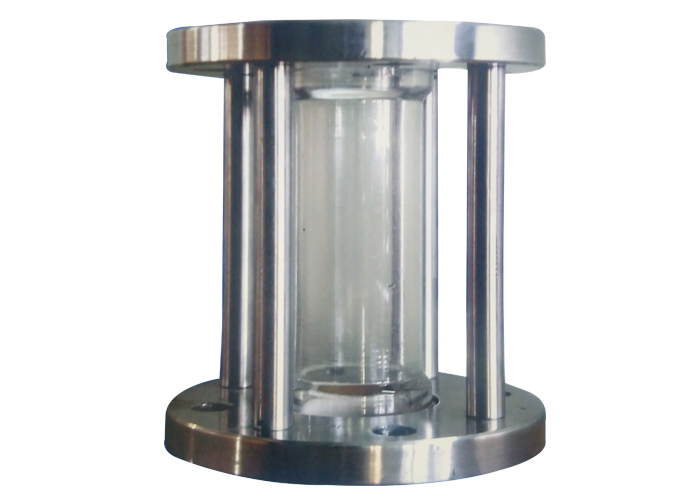

Sight glass is used to observe the in line flow of liquids in non-transparent pipe lines.It can be installed in vertical as well as horizontal position.
The Sight Glass is constructed in such a way that it gives a complete inside view from every angle.
Specification:
| MOC | |
|---|---|
| Flange | AISI Grade S.S.304 / S.S.316 & M.S. / P.P. |
| Stauff | AISI Grade S.S.304 / S.S. 316 & M.S. / M.S. (P.P.Coated) |
| Contact Parts | - |
| Glass pipe section | Borosilicate |
| T.Bush | 100% P.T.F.E. |
| Class & Table | ANSI B 16.5 class - 150 BS-10 Table D,E & F |
Product Details:
- One piece steel frame
- Contact parts: Insert to almost all chemicals Full view
- Leak proof fitting
- Easy replacement of glass pipe section
- Prompt delivery
- Superior Quality - Attractive prices
- Available in 25 DN (1') to 150 DN (6')

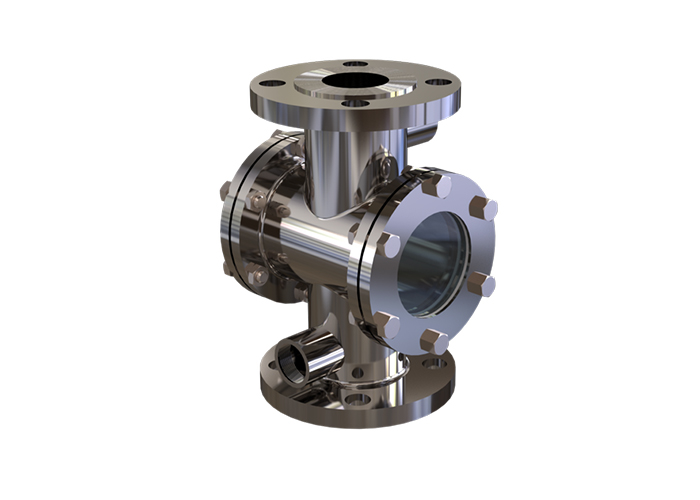

Double Window
Discription:
Double Window Type Sight Flow Indicators provide durable, quick and an economical way to verify the flow of liquids through industrial process lines. They are used in process lines having high pressure and temperature conditions and so are made from cast construction and fabricated design, to meet an industrial requirement of various applications and contain two toughened glasses mounted opposite to each other, for better visibility.
| Size | 25NB to 400NB |
| Material | SS/MS |
| Pressure | Upto 30 Bar |
| Temperature | 250 Degree |
- Large View Area
- Easy Maintenance and Durable Construction
- Custom-made Design possible on request
- FEP/PFA (PTFE) Lined available
- Material and Pressure Test Certificate can be provided on request
- High Pressure Rating upto 30 bar can be provided on request.
- Available in customised MOC for body and Jacket
- Different Flange Standards available.
