Manufacturer & Supplier of Non Return Valve. Our product range also comprises of Single Piece Threaded Ball Valve , Single Piece Flanged Ball Valve and Two Piece Flanged Ball Valve.

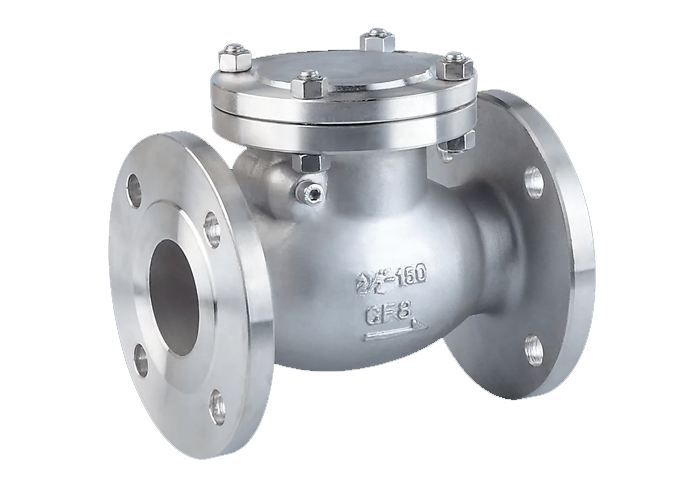

SWING CHECK VALVE
Discription:
We are a pioneer organization engaged in offering our quality product Non Return Valve. The offered valve is manufactured using quality approved raw material and cutting-edge techniques. This valve is designed in compliance with the set industry standards at our well-established manufacturing house. Additionally, we offer this valve after thorough quality checks against set parameters of quality to ensure its flawlessness.
Features:
- Robustness
- Easy installation
- Precise design

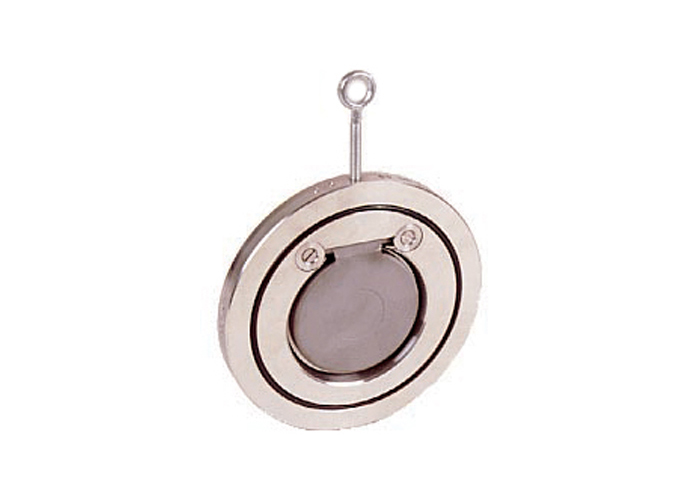

WEFAR TYPE VALVE
Discription:
Wafer Check Valve Wafer Design Plate Type Check Valve has short face-to-face dimensions and low weight allows a simple space saving installation between the companion flanges. The valves are suitable to mounting between weld neck or slip on type companion flanges of different standards.They are specially developed for applications where a low-pressure loss is essential. Opening and closing of the valve will take place at an extremely low-pressure difference over the valve disc. The eccentric disc shaft combination with the disc seat guarantees a positive shut off returning media. Wafer check valves are becoming the preferred type of check valve for most applications, due to their compact design and relatively low cost.
Features:
- Body Type: Single Plate, Short Type
- Suitable For Horizontal and Vertical Mounting
- Shorter overall length, mounting requires minimum space
- Low Pressure Drop Easy to Install
- Less Weight
- Maintenance Free
- Seat Leakage: Zero Leakage
- Tight Shut Off
- Temperature Range: -250 To + 2000 C
Standards:
- Design Standard API 6D
- Inspection & Testing Standard API 6D
- Face To Face As Per ANSI B 16.10
- End Connection Wafer Type
- Flange less
- Suitable to Mount Between Two Flanges
- Size Range 1" To 24"

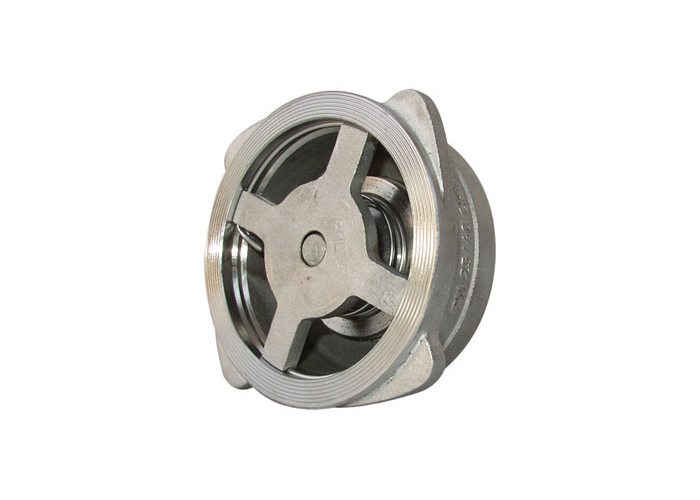

DISK CHECK VALVE
Discription:
We offer our prestigious customers quality assured range of Disk Check Valve These ball valves are manufactured using the best grade factor inputs that are procured from the certified vendors of the industry. Due to their complete compliance with the set universal norms, these valves are widely demanded by our reputed customers. The offered ball valves are sternly checked against different measures to make sure its flawlessness.
Features:
- Fine finish
- Easy installation
- Longer functioning life
